Customized Horizontal Feeder with 2s/Pcs Feeding Speed, Pneumatic Drive Mode, and 0.96-inch TFT Color Screen (GS-AAD2412)

Brand Name : GS

Model Number : GS-AAD2412

Place of Origin : China

MOQ : 1 PCS

Price : USD+negotiable+pcs

Payment Terms : T/T

Supply Ability : 1+pcs+per days

Delivery Time : 1-7 days

Packaging Details : 800*300*200mm

Model : GS-AAD2412

Overall dimensions (length * width * height unit: mm) : 536*109*140.5mm

Weight : 9KG

Working voltage : DC 24V

Gas source requirements : 0.5-0.7Mpa

Maximum current : 1.3A

Feeding speed : 2s/Pcs

Drive mode : Pneumatic

Operation panel : 0.96-inch TFT color screen, 80*160 pixels

Material lifting error : ±0.4mm

Applicable tape width : 63-90 mm

Condition : New

Contact Now

K Horizontal Feeder (GS-AAD2412)

[Customized Version]

The horizontal feeder is an electronic component supply device that keeps a certain interval and feeds out the horizontal tape-packed electronic components one by one at the prescribed time, shapes them and cuts the lead wires, and supplies them to the insertion machine.

Customized Horizontal Feeder with 2s/Pcs Feeding Speed, Pneumatic Drive Mode, and 0.96-inch TFT Color Screen (GS-AAD2412)

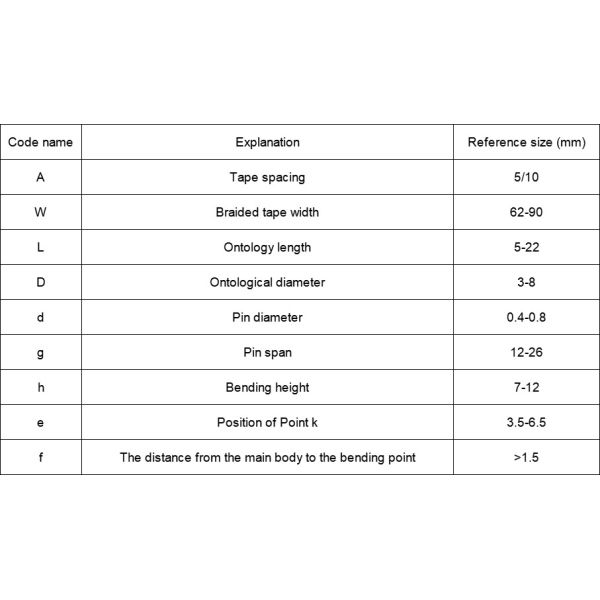

Applicable to the specifications of braided tape materials

Customized Horizontal Feeder with 2s/Pcs Feeding Speed, Pneumatic Drive Mode, and 0.96-inch TFT Color Screen (GS-AAD2412)

If there are special material dimensions, you can contact our company for consultation and to provide solutions and customize exclusive feeders.
